N-GEMS Asset Tracking project Details
www.ngems.co
Deliverables
Note: Click the links below to view the documents.
Below are a few snippets of the selected work that includes User Flow, Customer Journey, Low-Mid-High Fidelity Prototypes and Product Videos.
Medical asset tracking for hospitals
NGEMS Hardware and software solutions
N-GEMS Tracker that maps availability of ventilator within and across hospital network.
Software
N-GEMS software architecture diagram
N-GEMS API providing equipment data
software

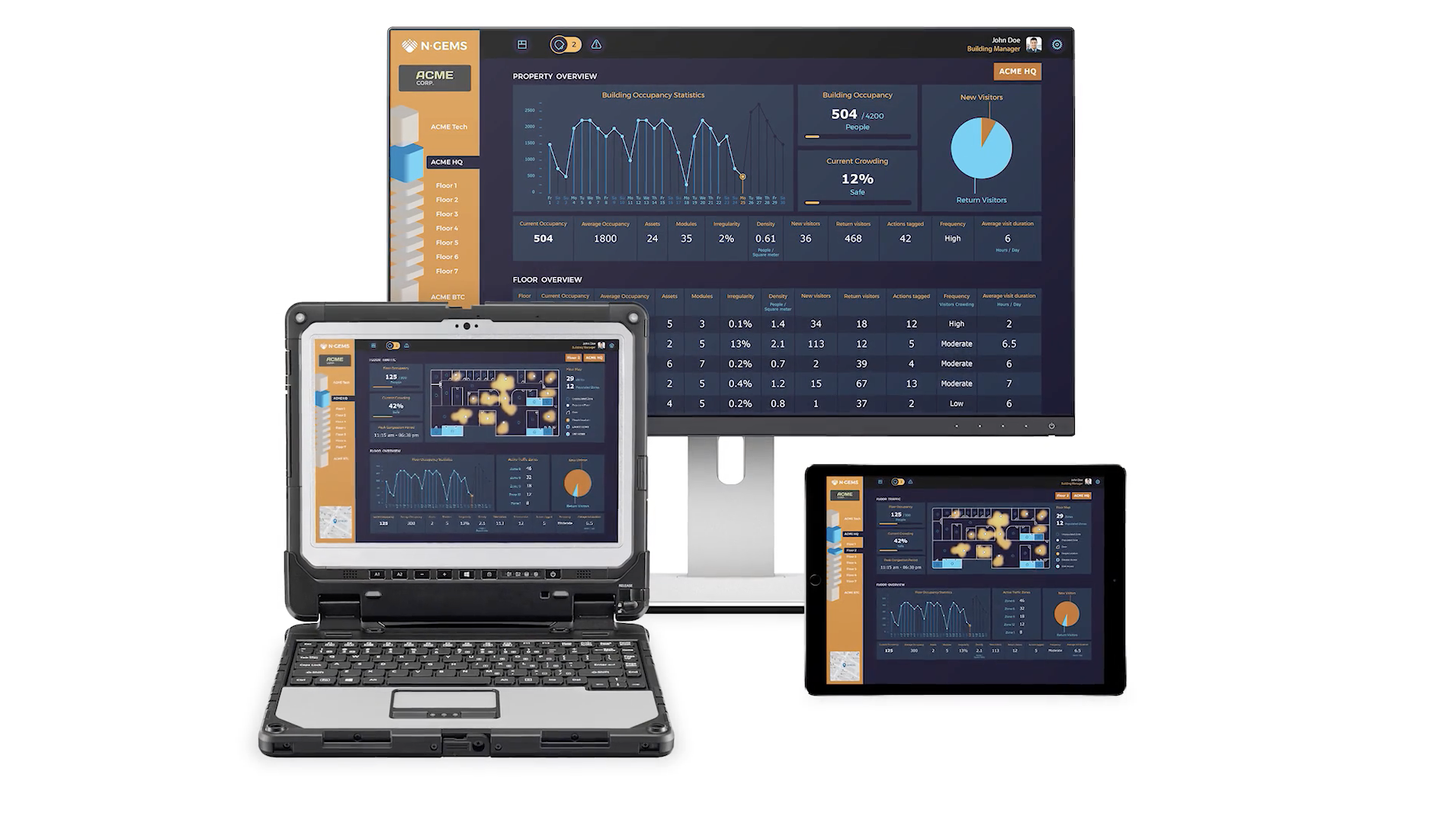

Web-based application on a PC will provide a visualization interface of medical device location information.To access the location information, a user will sign in to the secure NGEMS web portal using a commercial web browser such as Microsoft Internet Explorer or Google Chrome and configurable to legacy infrastructure requirements of hospitals. Once signed in, the authorized user will be presented with the NGEMS dashboard. This dashboard has been tailored to the specific use case of Hospital Asset Management. Users will select the floor and asset for which they are searching, and the results will appear on a visual map and list view showing the location of devices. This information will update in real-time as the assets move to different locations within the hospital.
NGEMS software comprises of a NodeJS based API server and a ReactJS based web platform. The NGEMS modules collect real-time location data and transfer it to be stored in AWS PostgreSQL database using write servers. The read servers act as a gateway between the data and users. It provides various ways of accessing stored data in form of JSON objects based on different filters such as buildings, floors, date range, device type etc. The API is also used by the web platform to display data in real time using web sockets. It shows information visualized on the floor maps equally divided into zones.
Hardware
Hardware Enabled Software as a Service Platform

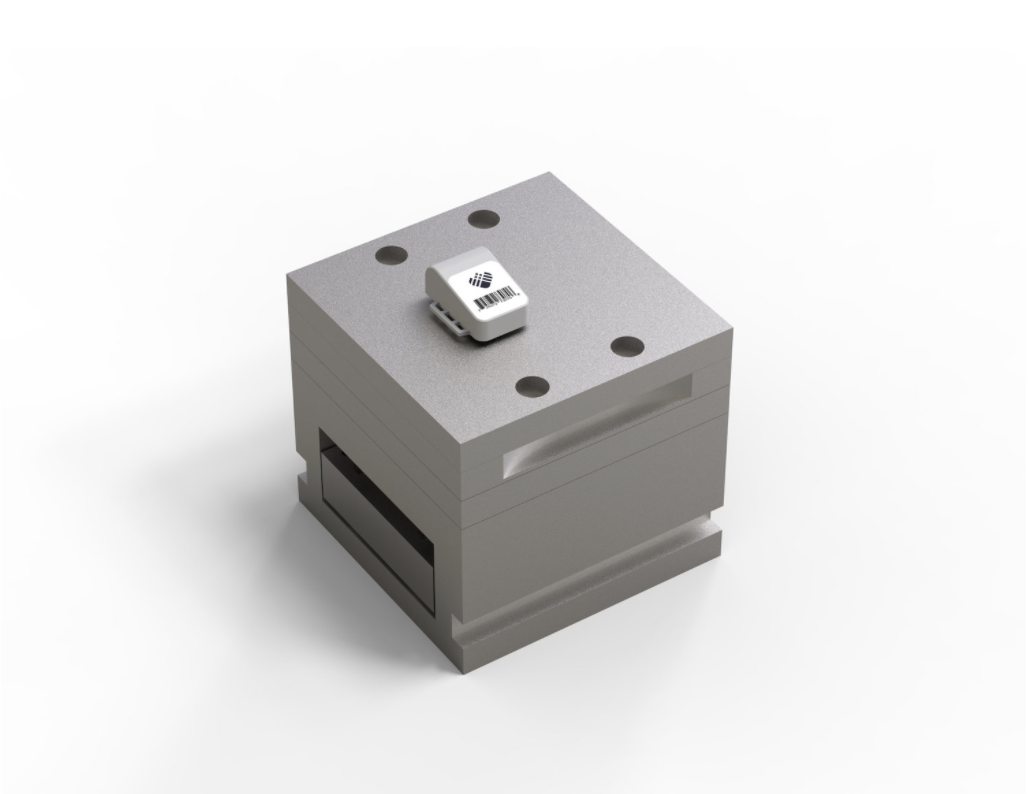

NGEMS asset monitoring hardware consists of a tag mounted on the equipment to be tracked. The tag has a simple interface of one button which can be pushed to change the state of the device from ‘in-use’ to ‘free’. This is indicated by an LED on the device as well.
When the user presses the button, the tag wakes up and sends the current state of the device, as well as the strength of all the wifi and bluetooth signals in range. This information is then used to triangulate the position of the device on the server side. The device goes back to deep sleep, conserving power.
Because the device communicates to the server over GSM, no additional hardware needs to be installed. Cost scales linearly with the number of devices in use. And, because triangulation is done on the server-side, all tags have identical software. This allows for additional hardware to be deployed with speed, as well as allows for pilot demos with as few as one device, and no other cost.
5cm x 2.5cm x 1.5 cm in size. Approximately the size of two quarters. They can be made fully enclosed and water resistant.
Scaling:
Because the tags are independent units that only transmit over LTE, scaling is not an issue. As long as LTE service is available as many devices as needed can be deployed.
Location engine:
Triangulation is done using wifi and bluetooth signal strength. The wifi environment is mapped out upon deployment and KNN grouping is used to locate the device based on signal strength. The location accuracy is approximately 6meters, but this is highly variable based on the number of wifi routers present. Location accuracy can be improved by deploying off the shelf bluetooth beacons.
NGEMS asset tracking for hospitals
N-GEMS Asset Tracker to identify real-time location of the movable equipment
In manufacturing, every second matters, and staff are often spread thin managing floor operations.
We help manufacturing executives reduce downtime losses and increase savings through improved workflow efficiencies and production capacity. Our service enables factory personnel to quickly locate equipment, reducing search times’ effects on productivity and workflow.
With N-GEMS real-time location system, manufacturers can receive all the perks of equipment tracking services in the most economical and efficient solution available.
N-GEMS asset tracking for emergency services
N-GEMS real-time site awareness solution offers a spatial IoT analytics platform designed to be muti-situational.
During normal operations it enables site owners to efficiently manage businesses with the real-time location of visitors and useful analytics of historical data. During emergencies, it aids rescue personnel to maximize rescue operations.
Analytical Services
The service is designed to exist as either a stand-alone system or easily integrated into 3rd party software through N-GEMS web service APIs. This allows a “best fit” tailored solution so NGEMS can quickly expedite, augment and compliment your business or people locative needs.
Emergency Integration
During a crisis, the N-GEMS platform collects signals from emergency IoT devices and transmits useful information to safety and rescue personnel. The N-GEMS web service API is designed to integrate with incident management and computer aided dispatch services. Real-time site analytics aid central monitoring stations, dispatch units and rescue personnel in strategic decision making. This life saving information normally unavailable to them, is made available right at their fingertips before they even arrive on the scene.
